FWD-0325-0R 25-225mm F0.96-1.5 1280×1024@12μm LWIR Motorized Zoom Lens — Chalcogenide Series

  • FWD-0325-0R 25-225mm F0.96-1.5 1280×1024@12μm LWIR Motorized Zoom Lens — Chalcogenide Series
Tempat asal Cina
Nama merek Forward
Nomor model FWD-0325-0R
Kuantitas min Order 1
Waktu pengiriman 5-8 Hari Kerja
Syarat-syarat pembayaran T/T
Menyediakan kemampuan 10.000/tahun
Detail produk
Tinggalkan pesan
Deskripsi Produk
FWD-0325-0R 25-225mm F0.96/1.5 1280×1024@12μm LWIR Fixed-Focus Lens (Germanium-to-Chalcogenide Upgrade Series)
Product Overview

LWIR Motorized Zoom Lens — Chalcogenide Series


As an innovative alternative to traditional Germanium lenses, this Chalcogenide glass lens series operates within the 8–12 μm wavelength band. Featuring an advanced motorized athermalized design, it ensures stable and precise focusing across an extreme temperature range from -40°C to +80°C. This high-performance series is ideally suited for applications in thermal imaging, weapon sights, and security surveillance.

Key Parameters
  • Operating Wavelength: 8-12 μm (Long-Wave Infrared)
  • Operating Temperature: -40°C to +80°C (Ensuring stable performance in extreme environments)
  • Key Applications: Thermal imaging cameras, optical sights, and high-end security surveillance systems
Technical Specifications
Parameter Value
EFL 25-225mm
Sensor 1280*1024/12μm
FNo 0.96/1.5
FOV(D*H*V) 45.8°35.4°*28.2°/4.8°*3.8°*3.0°
/4.8*2Wavelength 8-12μm
Transmittance ＞85%
Focus Continuous zoom
Focus distance 3m~∞/20m~∞
Sealing IP67
Operation Temperature -40~80℃
Weight ＜4.6KG
Product Images

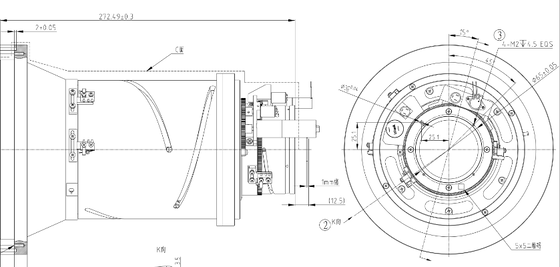

FWD-0325-0R 25-225mm F0.96-1.5 1280×1024@12μm LWIR Motorized Zoom Lens — Chalcogenide Series 0
